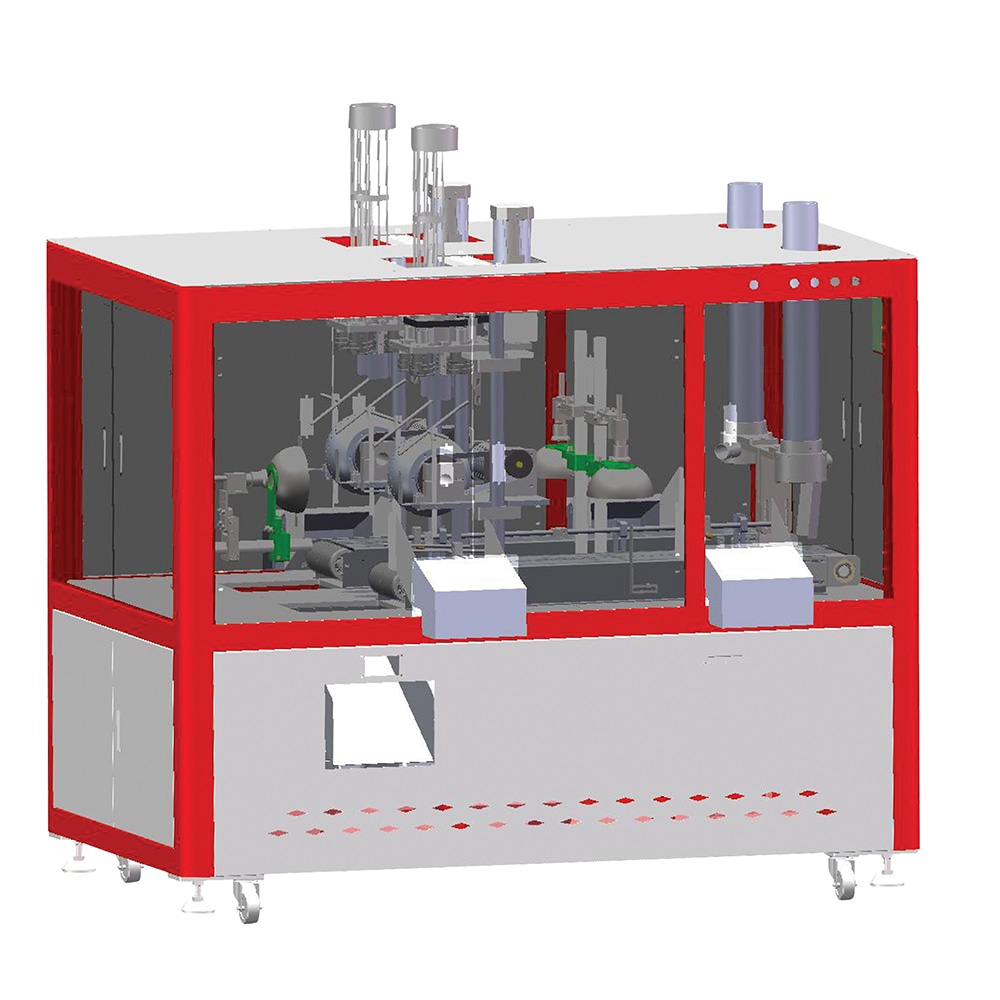

Cup inspection machine is designed for automatic detecting defectives like paper cup dirt, open rim, and breakage bottom...etc. with minimum black dot 0.3mm. Passing rate after inspection >99.8%.
Rim, inner side, inner bottom, outer bottom...etc.
Dimension, open rim, dirt, deformation...etc.

Item	JC200	JC400
Cup sizes	Top Dia./Inspection Calibre φ48-φ125	Top Dia./Inspection Calibre φ48-φ125
Machine speed	Max.200pcs/min	Max.400pcs/min
Machine net weight	400kg	700kg
Power supply	380V,50HZ	380V,50HZ
Rated power	4KW	8KW
Air consumpion	0.1m³/min at 6kg/cm³	0.2m³/min at 6kg/cm³
Machine size	L1830*W1560*H1650mm	L1830*W1100*H1650mm
